Trailer Name: 8.5' x 20'

Overall Length: 25'

Overall Width:8'6"

Overall Height with A/C: 10'4"

Interior Height: 7'

Deck Height: 23"

Rear Opening Width: 90"

Rear Opening Height: 83"

Tongue Length to Center of Ball: 46"

Width Between Wheel Wells: 83"

Axle Type: Torsion

Axle Quantity: Tandem

GVWR: 7,700 lbs

Brakes: Electric

Tire Size: 225/75R15

Tire Load Range: D

Hitch Height to Top of Ball: 22"

Hitch Ball Size: 2-5/16"

Floor Studs: 24" on center

View Gallery

Wall Studs: 16" on center

Ceiling Studs: 16" on center

Estimated Base Model Weight: 4,060 lbs

Estimated Tongue Weight with Gen: 950 lbs

Estimated Tongue Weight without Gen: 670 lbs

Trailer Name: 8.5' x 24'

Overall Length: 29'

Overall Width:8'6"

Overall Height with A/C: 10'4"

Interior Height: 7'

Deck Height: 23"

Rear Opening Width: 90"

Rear Opening Height: 83"

Tongue Length to Center of Ball: 46"

Width Between Wheel Wells: 83"

Axle Type: Torsion

Axle Quantity: Tandem

GVWR: 11,440 lbs

Brakes: Electric

Tire Size: 225/75R15

Tire Load Range: D

Hitch Height to Top of Ball: 22"

Hitch Ball Size: 2-5/16"

Floor Studs: 24" on center

View Gallery

Wall Studs: 16" on center

Ceiling Studs: 16" on center

Estimated Base Model Weight: 4,375 lbs

Estimated Tongue Weight with Gen: 914 lbs

Estimated Tongue Weight without Gen: 625 lbs

Trailer Name: 8.5' x 25' Bedroom

Overall Length: 30'

Overall Width:8'6"

Overall Height with A/C: 10'4"

Interior Height: 7'

Deck Height: 23"

Rear Opening Width: 90"

Rear Opening Height: 83"

Tongue Length to Center of Ball: 46"

Width Between Wheel Wells: 83"

Axle Type: Torsion

Axle Quantity: Tandem

GVWR: 11,440 lbs

Brakes: Electric

Tire Size: 225/75R15

Tire Load Range: D

Hitch Height to Top of Ball: 22"

Hitch Ball Size: 2-5/16"

View Gallery

Floor Studs: 12" on center

Wall Studs: 16" on center

Ceiling Studs: 16" on center

Estimated Base Model Weight: 5,000 lbs

Estimated Tongue Weight with Gen: 1,132 lbs

Estimated Tongue Weight without Gen: 776 lbs

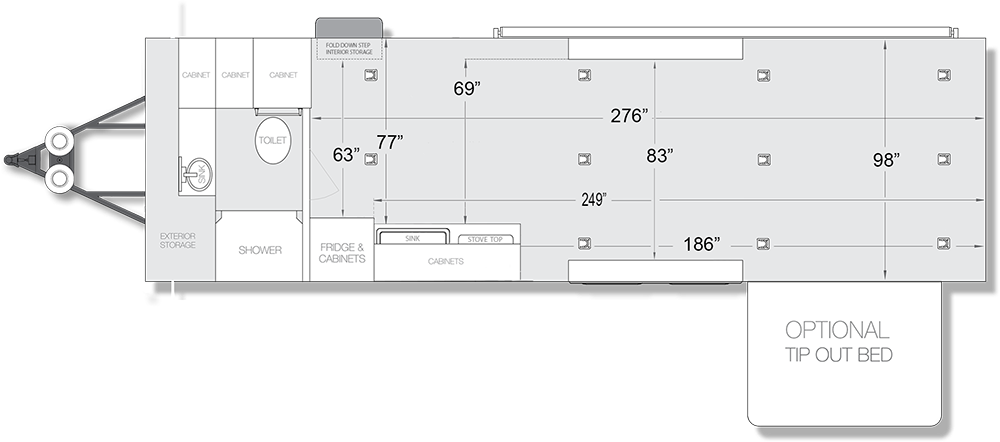

Trailer Name: 8.5' x 28'

Overall Length: 33'

Overall Width:8'6"

Overall Height with A/C: 10'4"

Interior Height: 7'

Deck Height: 23"

Rear Opening Width: 90"

Rear Opening Height: 83"

Tongue Length to Center of Ball: 46"

Width Between Wheel Wells: 83"

Axle Type: Torsion

Axle Quantity: Tandem

GVWR: 11,440 lbs

Brakes: Electric

Tire Size: 225/75R15

Tire Load Range: D

Hitch Height to Top of Ball: 24"

Hitch Ball Size: 2-5/16"

Floor Studs: 16" on center

View Gallery

Wall Studs: 16" on center

Ceiling Studs: 16" on center

Estimated Base Model Weight: 4,810 lbs

Estimated Tongue Weight with Gen: 1,174 lbs

Estimated Tongue Weight without Gen: 798 lbs

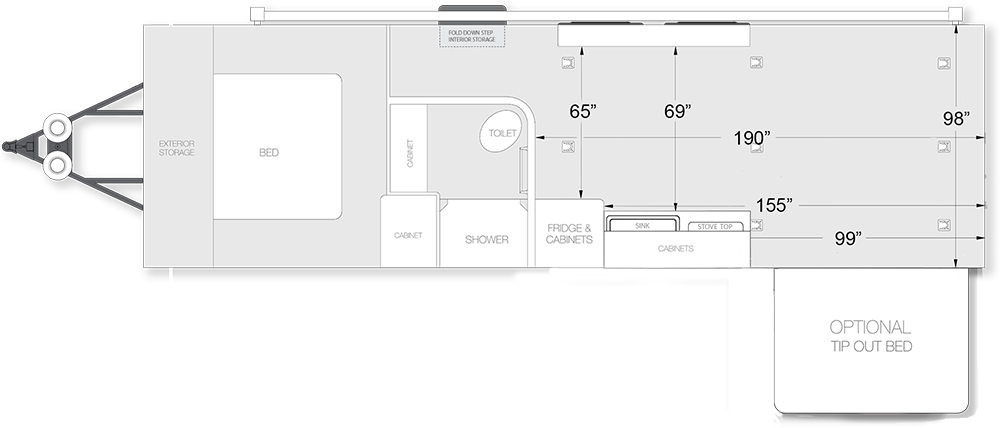

Trailer Name: 8.5' x 28' Bedroom

Overall Length: 33'

Overall Width:8'6"

Overall Height with A/C: 10'4"

Interior Height: 7'

Deck Height: 23"

Rear Opening Width: 90"

Rear Opening Height: 83"

Tongue Length to Center of Ball: 46"

Width Between Wheel Wells: 83"

Axle Type: Torsion

Axle Quantity: Tandem

GVWR: 11,440 lbs

Brakes: Electric

Tire Size: 225/75R15

Tire Load Range: D

Hitch Height to Top of Ball: 24"

Hitch Ball Size: 2-5/16"

Floor Studs: 12" on center

View Gallery

Wall Studs: 16" on center

Ceiling Studs: 16" on center

Estimated Base Model Weight: 5,445 lbs

Estimated Tongue Weight with Gen: 985 lbs

Estimated Tongue Weight without Gen: 800 lbs

Standard Features

FRAME

• FULL PERIMETER ALUMINUM FRAME

• (2) AXLES, TORSION, EZ LUBE, W/ BRAKES

• 5200# AXLES (8.5x24, 25 & 28 models)

• 3500# AXLES (7X20, 24 & 8.5X20 models)

• 2000# SIDE WIND JACK

• REAR SCISSOR JACKs/5000# EACH (2 pair-8.5X28)

• COUPLER - 2-5/16" - POWDER COATED GREY

• FENDERS - ALUMINUM

• EXTRUDED ALUMINUM FLOOR

• RECESSED FLOOR D-RINGS (5000# CAPACITY)

INTERIOR

• 7” INTERIOR HEIGHT

• AZDEL DECORATIVE WALL BOARD

• AZDEL WHITE VINYL CEILING

• 1" E.P.S. INSULATED WALLS R-3

• FIBERGLASS BATTEN INSULATION FOR CEILING R-11

• 6" ATP INTERIOR KICKPLATE

• BLINDS

• (2) FIRE EXTINGUISHERS - 2.5# ABC

• WARDROBE (n/a on 6’ wide)

EXTERIOR

• SCREWLESS EXTERIOR

• .040 ALUMINUM

• ONE PIECE ALUMINUM ROOF

• RADIUS FRONT WALL WITH 2 EXTERIOR STORAGE DOORS

• ATP STONEGUARD

• STAINLESS STEEL REAR CORNERS

• (2) 12V ROOF VENTS WITH SWITCH

• SALEM TWO-WAY VENT SYSTEM

• POWER AWNING

• GRAB HANDLE FOR SIDE DOOR

• GRAB HANDLE FOR REAR DOOR

• FOLD OUT ADJUSTABLE STEP

• RVIA CERTIFICATION SEAL

ELECTRICAL

• 7-WAY PLUG

• 50 AMP DISTRIBUTION PANEL - 120V OUTPUT W/ 12V CONVERTER

• 50 AMP SHORE CORD & MOTORBASE - BLACK

• MANUAL POWER CUT-OFF SWTICH - 12V

• PREWIRED VENTED BATTERY COMPARTMENT

• 120V & 12V POWER OUTLET - INTERIOR & EXTERIOR

• (2) USB POWER OUTLETS

• COAX CABLE OUTLET - EXTERIOR & INTERIOR

• TV PREP PACKAGE

• HD DIGITAL TV ANTENNA

• LED INTERIOR LIGHTING

• SYSTEM CONTROL PANEL W/ TANK & BATTERY MONITOR

• LED CLEARANCE & BRAKE LIGHTS

• REINFORCE AND WIRE FOR FUTURE A/C

• CO DETECTOR

• SMOKE DETECTOR

• LP DETECTOR

PLUMBING

• 100 GALLON FRESH WATER TANK (51 GALLON ON 6' WIDE)

• 45 GALLON GRAY WATER TANK

• 45 GALLON BLACK WATER TANK

• (2) 20# LP TANKS WITH BLACK TANK COVER

• 6 GALLON DSI LP GAS/ELECTRIC WATER HEATER

• 25,000 BTU DUCTED LP FURNACE

• 12V WATER PUMP WITH WINTERIZING TAP

• CITY WATER HOOK UP & GRAVITY FILL

• 10' SEWER HOSE WITH STORAGE TUBE

DOORS & WINDOWS

• 28" DOOR WITH SCREEN DOOR/TINTED WINDOW

• LIGHTWEIGHT CABLELESS REAR RAMP DOOR W/ SPRAY-ON BED LINER

• (2) 24" X 22" TOP HINGED BAGGAGE DOORS - ATP W/ GAS SHOCK

• (1) 30" X 20" EGRESS WINDOW WITH SLIDER

• (2) 42" X 36" SLIDER WINDOW

• (1) 72" X 28" SLIDER WINDOW

KITCHEN

• 27" FARMHOUSE SINGLE BOWL STAINLESS STEEL SINK

• BRUSHED NICKEL FAUCET WITH PULL OUT SPRAYER

• 6.0 CU FT 2-WAY REFRIGERATOR(120V/LP)

• LOWER ALUMINUM CABINET WITH SOLID SURFACE COUNTER TOPS

• UPPER ALUMINUM CABINET

• ALUMINUM REFRIGERATOR CABINET

• 2-BURNER FLUSH MOUNT LP COOK TOP

BATHROOM

• ALUMINUM PARTITION WALL WITH 21" DOOR - WELDED CONSTRUCTION

• TOWEL BAR, TP HOLDER, TOWEL HOOKS - BRUSHED NICKEL

• PORCELAIN RV STYLE TOILET

• 1 PIECE RECTANGULAR SHOWER WITH EXTEND-A-SHOWER & CURTAIN

• SINGLE LEVER SHOWER, SPRAYER, WATER SHUTOFF BUTTON

• UPPER ALUMINUM CABINET

• MIRROR

• SOLID SURFACE COUNTER TOP W/ STAINLESS STEEL SINK & BRUSH NICKEL FAUCET

• LINEN CLOSET

• CABINETS

TIRES/WHEELS

• ST225/75R15/LRE TIRES ON ALUMINUM WHEEL WITH SS LUG NUTS

• SPARE ST225/75R15/LRE TIRE ON GRAY WHEEL

• HIDE A SPARE - EZ ACCESS

FRONT BEDROOM FEATURES

• QUEEN BED WITH STORAGE

• PILLOW TOP MATTRESS

• BEDROOM CABINET PACKAGE

• 5' SHELF

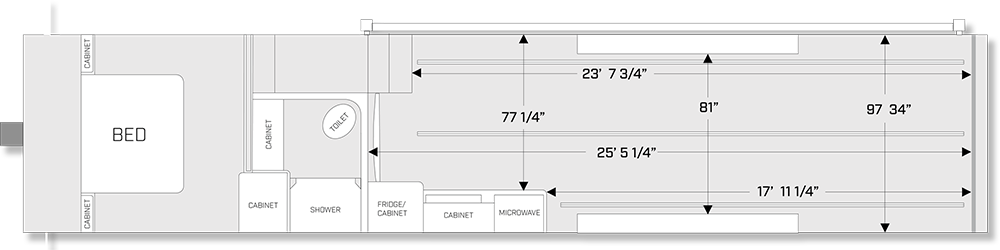

Trailer Name: 8.5' x 40' 5th Wheel

Overall Length: 41' 3"

Overall Width:8'6"

Overall Height with A/C: 13'

Interior Height (angled ceiling): 8' - 10'

Interior Bedroom Height: 6'2"

Deck Height: 27"

Rear Opening Width: 96"

Rear Opening Height: 90"

Clearance To Bottom of Bunk: 64"

Width Between Wheel Wells: 81"

Axle Type: Torsion

Axle Quantity: Triple

GVWR: 21,600 lbs

Brakes: Electric

Tire Size: ST 235/75R16LRE

Tire Load Range: E

Floor Studs: 16" on center

Wall Studs: 16" on center

Ceiling Studs: 16" on center

Estimated Base Model Weight: 10,000 lbs

Standard Features

FRAME - 5TH WHEEL

• FULL PERIMETER ALUMINUM FRAME

• (3) AXLES, TORSION, EZ LUBE, W/ BRAKES

• 6000# AXLES

• JACKS - TWO POST - ELECTRIC - 21" STROKE - 6.0K - FRONT

• REAR SCISSOR JACKS

• COUPLER - 5TH WHEEL

• FENDERS - ALUMINUM

• EXTRUDED ALUMINUM FLOOR

• RECESSED FLOOR D-RINGS (5000# CAPACITY)

INTERIOR - 5TH WHEEL

• 8' MINIMUM INTERIOR HEIGHT (GARAGE AREA)

• AZDEL DECORATIVE WALL BOARD

• AZDEL WHITE VINYL CEILING

• 1" E.P.S. INSULATED WALLS R-3

• FIBERGLASS BATTEN INSULATION FOR CEILING R-11

• 6" ATP INTERIOR KICKPLATE

• ROLLER SHADES

• (2) FIRE EXTINGUISHERS - 2.5# ABC

EXTERIOR - 5TH WHEEL

• SCREWLESS EXTERIOR

• ONE PIECE ALUMINUM ROOF

• RADIUS FRONT WALL WITH 2 EXTERIOR STORAGE DOORS

• ATP STONEGUARD

• STAINLESS STEEL REAR CORNERS

• (3) 12V ROOF VENTS WITH SWITCH

• SALEM TWO-WAY VENT SYSTEM

• POWER AWNING WITH LED LIGHTING

• HAND RAIL FOR SIDE DOOR

• GRAB HANDLE FOR REAR DOOR

• FOLD OUT TRIPLE STEP

• RVIA CERTIFICATION SEAL

ELECTRICAL - 5TH WHEEL

• 7-WAY PLUG

• 50 AMP DISTRIBUTION PANEL - 120V OUTPUT W/ 12V CONVERTER

• 50 AMP SHORE CORD & MOTORBASE - BLACK

• MANUAL POWER CUT-OFF SWTICH - 12V

• PREWIRED VENTED BATTERY COMPARTMENT

• 120V & 12V POWER OUTLET - INTERIOR & EXTERIOR

• (3) USB CHARGING PORTS

• COAX CABLE OUTLET - EXTERIOR & INTERIOR

• TV PREP PACKAGE

• HD DIGITAL TV ANTENNA

• SYSTEM CONTROL PANEL W/ TANK & BATTERY MONITOR

• LED CLEARANCE & BRAKE LIGHTS

• CO DETECTOR

• SMOKE DETECTOR

• LP DETECTOR

PLUMBING - 5TH WHEEL

• (2) 100 GALLON FRESH WATER TANK

• 45 GALLON GRAY WATER TANK

• 45 GALLON BLACK WATER TANK

• (2) 30# LP TANKS

• 10 GALLON DSI LP GAS/ELECTRIC WATER HEATER

• 25,000 BTU DUCTED LP FURNACE

• 12V WATER PUMP WITH WINTERIZING TAP

• CITY WATER HOOK UP & GRAVITY FILL

• 10' SEWER HOSE WITH STORAGE TUBE

DOORS & WINDOWS - 5TH WHEEL

• 28" DOOR WITH SCREEN DOOR/TINTED WINDOW

• CABLELESS REAR RAMP DOOR W/ NON

• (2) TOP-HINGE BAGGAGE DOORS - ATP

• (2) EGRESS WINDOWS WITH SLIDER

• (4) SLIDER WINDOWS

KITCHEN - 5TH WHEEL

• FARMHOUSE SINGLE BOWL STAINLESS STEEL SINK

• BRUSHED NICKEL FAUCET WITH PULL OUT SPRAYER

• 8.0 CU FT 2-WAY REFRIGERATOR(120V/LP)

• LOWER ALUMINUM CABINET WITH SOLID SURFACE COUNTER TOPS

• UPPER ALUMINUM CABINET

• ALUMINUM REFRIGERATOR CABINET

• 2-BURNER FLUSH MOUNT LP COOK TOP

BATHROOM - 5TH WHEEL

• ALUMINUM PARTITION WALL WITH 24" DOOR - WELDED CONSTRUCTION

• BRUSHED NICKEL-BATHROOM HARDWARE

• PORCELAIN RV STYLE TOILET

• 1 PIECE RECTANGULAR SHOWER WITH EXTEND-A-SHOWER & CURTAIN

• UPPER ALUMINUM CABINET

• MIRROR

• SOLID SURFACE COUNTER TOP W/ STAINLESS STEEL SINK & FAUCET

• LINEN CLOSET

• CABINETS

• VINYL FLOORING

TIRES/WHEELS - 5TH WHEEL

• ST235/75R16LRE

• SPARE ST235/75R16LRE

• HIDE A SPARE - EZ ACCESS

BEDROOM - 5TH WHEEL

• QUEEN BED WITH STORAGE

• PILLOW TOP MATTRESS

• BEDROOM CABINET PACKAGE

• CARPET BEDROOM AND DOWN STEPS
